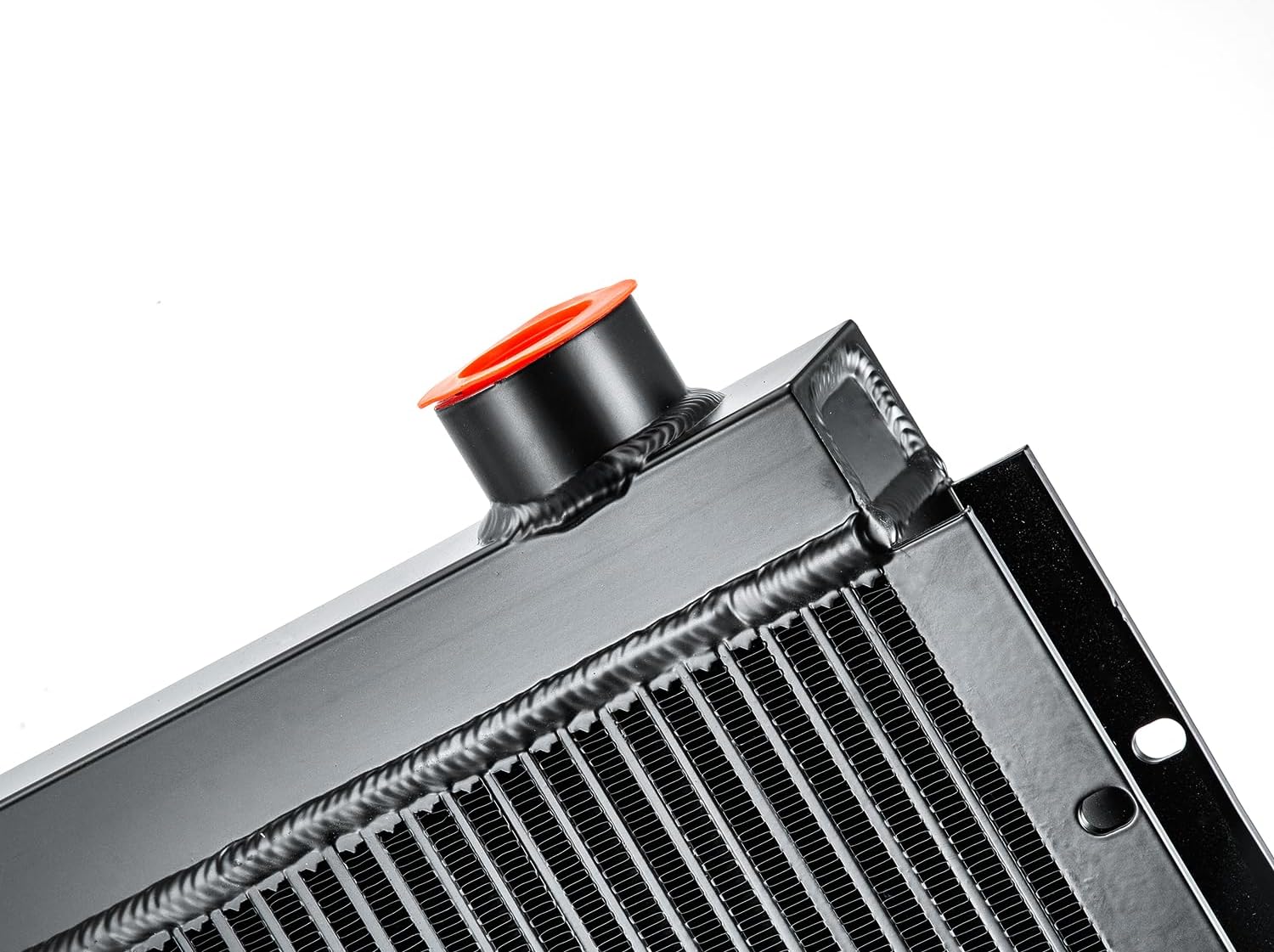

0-140GPM 155HP Mobile Hydraulic Oil Cooler, Full Aluminum Cooler for Heavy Duty Industrial Hydraulic System Cooling (Black)

Applications:For Heavy Duty Industrial Hydraulic System CoolingSize:Core (Finned area) Dimensions：27.6" x 36.4 x 2.56"Inlet Size：-24 SAE O-Ring Seal (1-7/8-12 UN)Outlet Size：-24 SAE O-Ring Seal (1-7/8-12 UN)Overall Dimensions：34.7" x 38.7" x 2.56"Max Working Temp:250°FMax Working Pressure:250 psiDescription:Hydraulic oil coolers, also called heat exchangers, use air or water to cool fluid in hydraulic systems. They pass oil through a coil or core to cool the oil before it enters the system. Heated oil causes excess wear on seals, surfaces, and other components, which can cause particulate buildup, damage components, and shorten the system's life span. Water oil coolers are compact and can be used in high-pressure applications such as those found in oil refineries and chemical processing plants. Air oil coolers pass heated fluid through a radiator-like core and use ambient air to cool hydraulic fluid. They do not require access to a power source, making them suitable for mobile applications where access to a power source is limited. These air-cooled oil coolers pass heated oil through a radiator-like heat exchanger and use ambient air to cool the oil. Ambient temperature affects the cooling capacity of these coolers. They are used in agricultural equipment, construction, sites, and other areas where access to a power source is limited.

• 【Application】- Mobile Hydraulic Oil Cooler for Heavy Duty Industrial Hydraulic Systems; Model OC-67 Replaces Cool-line C-120; 0-140GPM, 155HP.
• 【Premium Material】- Full aviation aluminum craftsmanship, 100% welded by TIG. Carefully crafted to exceptional OE standards for a precise fit, Aircraft AA5052 grade aluminum and with a raw aluminum finish.
• 【Specification】- Core (Finned area) Dimensions: 27.6" x 36.4 x 2.56"; Inlet Size: -24 SAE O-Ring Seal (1-7/8-12 UN); Outlet Size: -24 SAE O-Ring Seal (1-7/8-12 UN); Overall Dimensions: 34.7" x 38.7" x 2.56"; Max Working Temp: 250°F; Max Working Pressure: 250 psi.
• 【No leakage Worries】-100% pressure tested to prevent leakage. Thickened carton packaging with internal shock-absorbing design.
• 【US Local Stock & 1-Year Warranty】- We are a seller specializing in Cooling systems & Radiators. If you meet any problems, please kindly contact us by sending Amazon Message, and we will try our best to help you.
